Sliding Skylight Roof Hatch Type SKYACCESS-1M Product Image
Ladder Access Roof Hatch

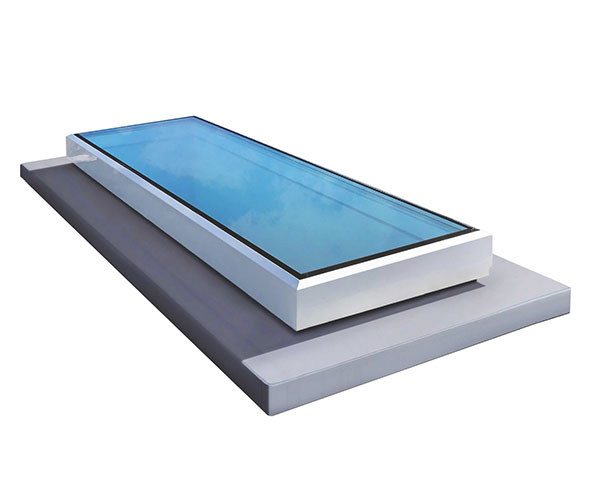

SKY-FLATGLASS-ACCESS Roof Hatch 1000x1500mm

The BILCO SKY Flatglass Roof Access Hatch and Skylight with a fixed ladder provides convenient access to roof areas while providing the added benefit of natural daylight. The innovative, flat, sliding cover design features an electric actuator that opens the cover in a smooth and controlled motion with just one push of a button. There is also a manual option for the roof access hatch to enable the operator to unlock and unlatch the cover using an internal handle and then manually slide the cover open, no motor is fitted. Special sizes can be specified.

The standard sized SKY-FLATGLASS-ACCESS 1000 x 1500 mm is a powered sliding roof access skylight. Also available as a manual option and at special sizes.

SKY-FLATGLASS-ACCESS-1MF

Features / Benefits

Convenient direct access to roof areas with the added benefit of natural daylight.

The unique, flat sliding cover design does not require wind deflectors and features a rigid PVC frame with external metal profiles.

The manual option enables the operator to unlock and unlatch the cover using an internal handle and then manually slide the cover open

Ideal for use in exposed areas where a hinged opening is impractical.

Over-lapping design ensures complete weathertightness.

The polyester upstand is fully insulated for energy efficiency.

Low voltage actuator opens and closes the cover in a smooth and controlled motion.

CE marked product can also be used as a ventilator for smoke ventilation protection.

PRODUCTS AVAILABLE / SIZES

POWERED

SKY-ACCESSP-1MF
Powered Sliding SKY Flatglass Roof Access Hatch
Clear opening size: 1000 x 1500 mm / Overall dimensions: 1300 x 1800 mm
Free aerodynamic area: 1m² / weight: 190kg

SKY-ACCESSP-SSF
Powered Sliding SKY Flatglass Special size Roof Access Hatch
*SPECIAL* (Fabricated to special size requirements)

MANUAL

SKY-ACCESSM-1MF
Manual Sliding SKY Flatglass Roof Access Hatch
Clear opening size: 1000 x 1500 mm / Overall dimensions: 1300 x 1800 mm
Free aerodynamic area: 1m² / weight: 190kg

SKY-ACCESSM-SSF
Manual Sliding SKY Flatglass Special size Roof Access Hatch
*SPECIAL* (Fabricated to special size requirements)

Performance Standards SKY-FLATGLASS-ACCESS-1MF

U-VALUE 1.26 W/m²K
IMPACT RESISTANCE Tested to BS EN 1873:2014 Class SB1200.
Test impact energy 1200 J.
OPERATION 24V DC battery-backed control system
WEATHERTIGHT Yes
FREE AERODYNAMIC AREA 1m²
AIR LEAKAGE PASS according to EN1873:2014
Less than 1.5m3/m2h or 0.5m3/hm to pressure 150Pa
GLASS FIRE REACTION A1 according to EN 13501-1
WARRANTY Glass 10yrs / Product 2yrs / Actuator 2yrs

Guide Specification SKY-FLATGLASS-ACCESS-1MF

GLASSFlat glass top, double layer security glass, toughened outside with aluminium spacer (space filled with argon 90%), laminated LOW-E inside.
COVERAssembled on a fully-welded PVC frame.
COVER GASKETExtruded EPDM rubber gasket ensures a continuous seal when compressed in the front and back of the vent.
CURB250mm height double layer (internal and external) polyester resin reinforced with fiberglass. Formed with 150mm flange / 9mm holes for securing to the roof deck.
CURB INSULATION60mm (thick) extruded polyurethane.
OPERATING MECHANISM24V DC actuator
FINISHGlass: Clear; PVC Profiles: White; Metal Profiles: White powder coated; Upstand: White
Weight190Kg
